AMADEUS

Classic | Wide | Low | Counter | Grip

Compact stacker with optimized size and numerous variants

  • Maximum lifting weight of 2,000kg / 4,400 lbs
  • Maximum lifting height 2,800mm / 110 inch
  • Maximum speed 1.8m/s / 6 f/s
  • Smart navigation

Compact

Move and lift loads in four combinable versions.

The AMADEUS high-lift stacker is at your side for all undertakings. It can not only pick up to two Euro pallets and industrial pallets, but also boxes, containers or special goods tailored to your needs. Driverless operation and its extremely compact design make the stacker an uncompromisingly industrial driverless transport vehicle with guaranteed personal safety.

Highlights

Driverless transport vehicles without compromise

Transport weight

Our designed self-built series device, despite its compactness, can carry payloads without restrictions of up to 2 tons / 4,400 pounds.

Do have any questions?
Contact
[Translate to English:]

Suitable for numerous applications

The AMADEUS high lift truck is available in Classic, Wide, Low , Counter and Grip models. Depending on the requirements of the operating environment and the loads to be transported, the automated stackers can also be combined and integrated into existing DS Automotion systems. According to your needs, we can also adapt the basic AMADEUS model directly to your requirements.

Discover our custom designs.

Benefits that move

Accommodating various load carriers

Our all-rounder can not only accommodate up to two Euro pallets and industrial pallets, but also boxes, containers or special goods tailored to your needs.

Highest precision

With the help of the latest sensor technology and sophisticated software, our products are more precise than any others.

Compatibility

The compatibility of our product range means that an optimal solution can be tailored to your requirements.

Smart evaluation technology/ traceability

Due to the coordinated software technology, your orders can be optimized and processed efficiently

Autonomy

Our proprietary autonomous vehicle software, ARCOS, enables our vehicles to handle jobs autonomously while maintaining the highest efficiency.

AI-supported optimization processes

Through our AI-supported optimization processes, the processes to be handled can be optimally planned and executed.

VDA5050 compatible

Our NAVIOS control system software is available with the VDA5050 interface.

Expandable plant

You can expand your plant at any time and equip it with additional vehicles. These are easy to integrate into the existing plant.

Solutions

The perfect product for your requirements

Lagerlogistik

Warehouse Logistics

The AMADEUS is optimized to receive goods and distribute them to logistics stations, warehouses or storage yards

More about warehouse logistics

AMADEUS Family in action

Skip slider
Amadeus Grip Imagefoto | DS AUTOMOTION
AMADEUS Imagefoto | DS AUTOMOTION
Jump to slider start

Variants & Technical Data

AMADEUS

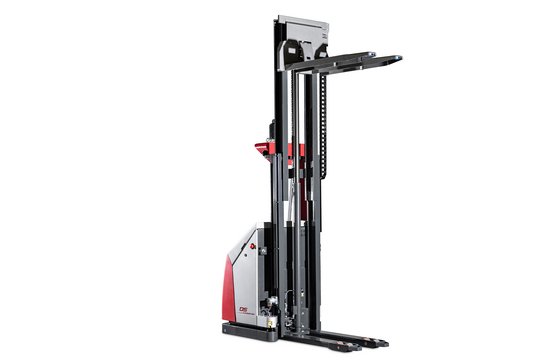

AMADEUS Classic Mono

Our classic: the stacker is ideally suited for pallets lengthwise, floor storage areas as well as transfer stations.

  • Payload: Max. 1.5 t / 3,300 lbs
  • Lifting height: 85 mm - 2,800 mm / 3 in - 110 in
AMADEUS Classic Mono

Payload: max. 1.5 t / 2.0 t // 3,300 lbs / 4,400 lbs

Speed max.: 1.8 m/s // 6 f/s

Lifting height / Fork height:

Mono Mast: 85 mm – 1000 mm // 3 in - 39 in
Duplex Mast: 85 mm – 2880 mm // 3 in - 113 in

Navigation: Laser, SLAM

Power supply: automatic charging, battery replacement

Battery:

Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63

Low maintenance cost: du to AC drives

Personal safety: Protected integrated laser scanner with 360° surround view



Field of application:

  • Pallets lenghtwise
  • Pallet cages crosswise
  • Floor space
  • Row of floor space
  • Transfer station (accessible with legs)
  • Pallet racks up to 2,700 mm / 9 ft
AMADEUS
AMADEUS wide

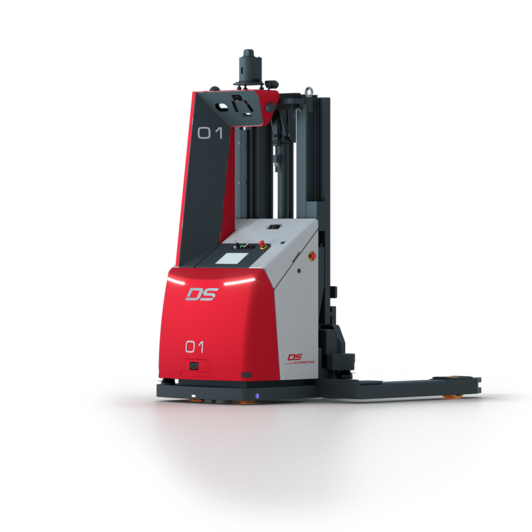

AMADEUS Wide

Another substructure enables the high lift stacker to grasp pallets and pallet cages crosswise as well as racks with forklift lugs

  • Payload: Max. 1.5 t / 3,300 lbs
  • Lifting height: 85 mm - 2,800 mm / 3 in - 110 in
AMADEUS Wide

Payload: max. 1.5 t / 2.0 t // 3,300 lbs / 4,400 lbs

Speed max.: 1.8 m/s // 6 f/s

Lifting height / Fork height:

Mono Mast: 85 mm – 1000 mm // 3 in - 39 in
Duplex Mast: 85 mm – 2880 mm // 3 in - 113 in

Navigation: Laser, SLAM

Power supply: automatic charging, battery replacement

Battery:

Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63

Low maintenance cost: du to AC drives

Personal safety: Protected integrated laser scanner with 360° surround view



Field of application:

  • Pallets lenghtwise
  • Pallet cages crosswise
  • Racks with forklift lugs
  • Floor space
  • Row of floor space
  • Transfer station (accessible with legs)
[Translate to English:]
AMADEUS low
AMADEUS Low

For commissioning challenges, the Amadeus Low is used. with the extra-long forks, two parettes can be picked up at the same time.

  • Payload: Max. 2 t
  • Lifting height: 85 mm - 100 mm / 3 in - 4 in
AMADEUS Low

Payload: max. 2.0 t // 4,400 lbs

Speed max.: 1.8 m/s // 6 f/s

Lifting height / Fork height: 100mm / 4 in

Navigation: Laser, SLAM

Power supply: automatic charging, battery replacement

Battery:

Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63

Low maintenance cost: du to AC drives

Personal safety: Protected integrated laser scanner with 360° surround view

[Translate to English:]
AMADEUS Counter
AMADEUS Counter

Is a counterbalanced truck for extreme requirements.

  • Payload: Max. 1.2 t / 2,645 lbs
  • Lifting height: 85 mm - 2,800 mm / 3 in - 110 in
AMADEUS Counter

Payload: max. 1.2 // 2,645 lbs

Speed max.: 1.8 m/s // 6 f/s

Lifting height / Fork height:

Mono Mast: 85 mm – 1200 mm // 3 in - 47 in
Duplex Mast: 85 mm – 2880 mm // 3 in - 113 in

Navigation: Laser, SLAM

Power supply: automatic charging, battery replacement

Battery:

Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63

Low maintenance cost: du to AC drives

Personal safety: Protected integrated laser scanner with 360° surround view



Field of application:

  • Pallets crosswise
  • Pallet cages crosswise
  • Racks with forklift lugs
  • Floor space
  • Row of floor space
  • Transfer station (accessible with legs)
AMADEUS Counter
AMADEUS grip

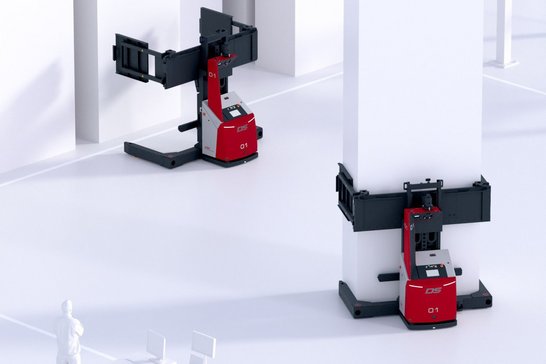

AMADEUS Grip

Just the right one for transporting insulation materials.

  • Payload: max. 800kg / 1764 lbs
  • Lifting height: 85 - 2800mm / 3 in - 110 in
AMADEUS Grip

Payload: max. 1.2/2.0 t // 2,645 lbs/4,400 lbs

Speed max.: 1.8 m/s // 6 f/s

Lifting height / Fork height:

Mono Mast: 85 mm – 1200 mm // 3 in - 47 in
Duplex Mast: 85 mm – 2880 mm // 3 in - 113 in

Navigation: Laser, SLAM

Power supply: automatic charging, battery replacement

Battery:

Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63

Low maintenance cost: du to AC drives

Personal safety: Protected integrated laser scanner with 360° surround view



Field of application:

  • Styrofoam blocks
  • Building material
AMADEUS grip
