OSCAR

 The platform vehicle with the highest performance

  • Compact design
  • Highest driving flexibility even in confined spaces
  • Sturdy steel construction with high load capacity
  • Automatic load change by means of integrated lift drive

agile

Wide range of applications and many transport options

Thanks to the extremely low design, our OSCAR is suitable for a large number of undercarriage transports. Whether undercarriages, racks, boxes or roll carts, all this can be picked up, transported and set down automatically. A high payload of 1000kg makes the OSCAR an absolute transport specialist.

Do you have any questions?
Contact
[Translate to English (Great Britain):]
Highlight

Maneuverability

Thanks to the proven drive technology, OSCAR navigates in the tightest of spaces. The servo drives ensure smooth running and positioning accuracy even in tight station conditions. Depending on the drive concept, OSCAR rotates at a standstill or moves completely surface-mobile through the course.

Experience more highlights

OSCAR
1,6m/sec
Due to the differential drive, forward and reverse travel is possible at the same speed. The AGV can travel up to 1.6m/sec / 5 f/s and turn while stationary
up to 1000kg
Due to the very stable design of the OSCAR, payloads of up to 1,000kg / 2,200 lbs are possible.
260mm
Very low design of the AGV with a height of 260mm or 295mm / 10 in or 11.5 in
OSCAR
Solution

The perfect underride vehicle for your requirements

Bereichsverkettung_2

Area chaining

Production halls often extend over many areas. Production lines are often not continuous, which means that different production steps are spatially separated from each other. This is the perfect application area for OSCAR.

More
OSCAR

Variants & technical data

OSCAR

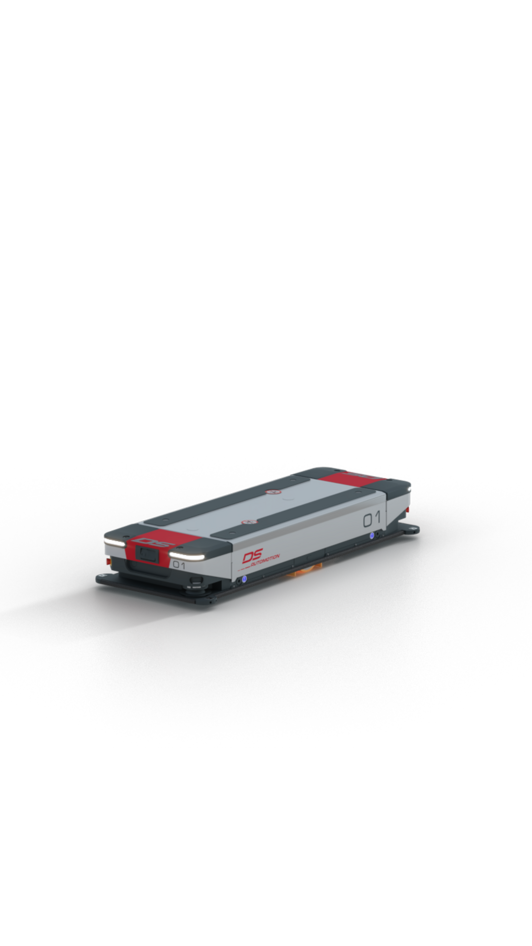

OSCAR Spin 180

With 80mm / 3 in lifting height, the OSCAR spin 180 is our lowest vehicle and especially suitable for load pickups with little space.

  • Payload: max. 1.0 t / 2,200 lbs
  • AGV frame height: 260mm / 10 in
OSCAR Spin 180
  • Lifting height: 80 mm / 3 in
  • Speed: max. 1.6m/s / 5 f/s
  • Size (LxWxH):  1,620x560x260 mm / 63.78x22.05x10.24 in
  • Protective field: rear/front 180°
  • Battery: 48V / 30Ah
  • Navigation: Free navigation by means of contour-based laser navigation and optional magnetic point navigation
OSCAR
OSCAR Spin 360

The 295 mm / 12 in flat OSCAR spin 360 is ideal for driving under load carriers or dollies that need to be lifted higher.

  • Payload: max. 1.0 t / 2,200 lbs
  • AGV frame height: 295mm / 12 in
OSCAR Spin 360
  • Lifting height: 130 mm / 5 in
  • Speed: max. 1.6m/s / 5 f/s
  • Size (LxWxH):  1,670x700x295 mm / 65.75x27.56x11.61 in
  • Protective field: rear/front 180°
  • Battery: 48V / 30Ah
  • Navigation: Free navigation by means of contour-based laser navigation and optional magnetic point navigation
[Translate to English (Great Britain):]

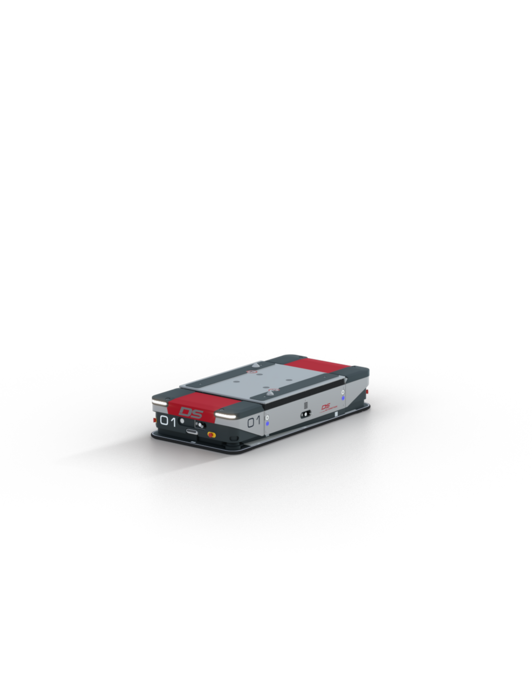

OSCAR Omni

Compact design with omnidirectional drive technology ensures efficiency even in the tightest of spaces thanks to its area mobility.

  • Payload: max. 1.0 t / 2,200 lbs
  • AGV frame height: 320mm / 12,6 in
OSCAR Omni
  • Lifting height: 160 mm / 6,3 in
  • Speed: max. 1.6m/s / 5 f/s
  • Size (LxWxH):  1520x720x310 mm / 59.8x28.3x12.2 in
  • Safety: Safety Laser Scanners 360
  • Battery: 48V / 42Ah
  • Power supply: Automatic opportunity charging
  • Navigation: Free navigation by means of contour-based laser navigation and optional magnetic point navigation
DS_Automotion__OSCAR_Omni_XL

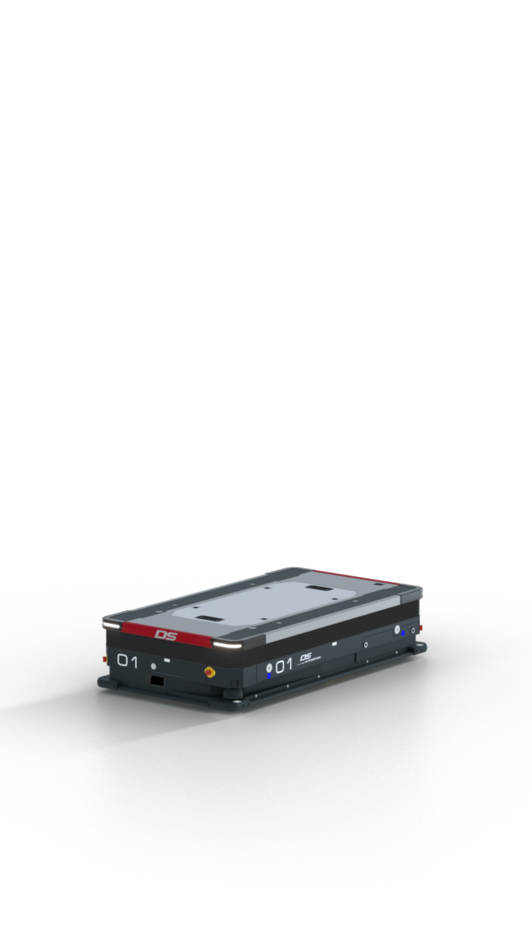

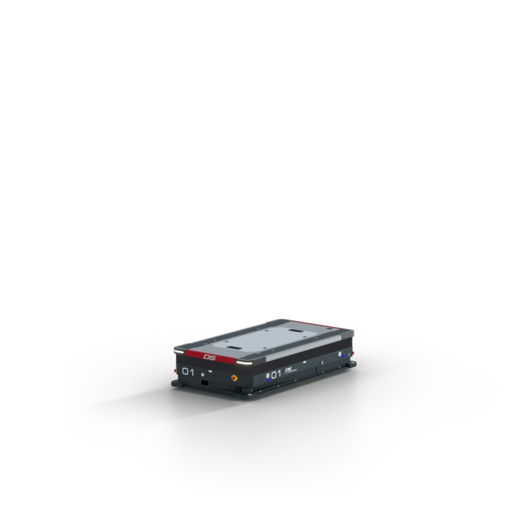

OSCAR Omni XL

With a lift deck, this new generation AGV combines full omnidirectional mobility with uncompromised personal safety

  • Payload max. 1,25 t (2,847 lbs)
  • AGV frame height: : 380mm (14,9 in)
OSCAR Omni XL
  • Lift height : 200 mm (7,8 in)
  • Speed: max. 1,6 m/s (5,25 f/s)
  • Payload:  •max. 1,25 t (2,847 lbs)
  • Größe (LxBxH):  1.700x900x380 mm / 66,9x35,4x 14,9 in
  • Safety: Safety Laser Scanners 360°
  • Battery: 24V / 120Ah
  • Power supply: Automatic opportunity charging
  • Navigation: contour, magnet, hybrid
DS_Automotion__OSCAR_Omni_XL
