AMY Autonomous Mobile Robot

Highlight

Reliability through experience

Based on 40 years of experience in mobile robotics, AMY was developed as a reliable autonomous mobile robot system that is specially optimized for production and intralogistic processes.

Experience more highlights

AMY

Laser scanners and TOF cameras in both directions of travel, light signals and autonomous decision-making

Thanks to a unique transfer concept with an active lifting table, sources and sinks can be designed as passive stations. This makes cost-effective implementation in existing systems easier than ever before.

AMY significantly increases your productivity. Thanks to its intelligent technology, AMY is not only easy to operate, but also extremely effective in a swarm.

Plannable autonomy makes it possible to use autonomous functions specifically where they are advantageous. Conversely, autonomous functions can be deliberately prevented where they have disadvantages.

AMY deck mobiler Roboter für kleine Ladungsträger von DS Automotion GmbH

SOLUTIONS

The perfect vehicle for your requirements

Small parts transport

As a compact basic vehicle, AMY can be equipped with a wide range of load handling attachments, making it ideal for transporting all types of small parts.

More

AMY

Technical Data

AMY, the reliable autonomous mobile robot system

Payload: 25 kg | 55 lbs
LxBxH: 638 x 428 x 349 mm | 25.1 in / 16.9 in / 13.7 in
Navigation / Track guidance: F/S
Speed: 1,8 m/s | 5.9 f/s

AMY, the reliable autonomous mobile robot system

Max. payload: 25 kg | 55 lbs
LxBxH: 638 x 428 x 349 mm | 25.1 in / 16.9 in / 13.7 in
Navigation: Contour-based
Communication with host computer: WLAN
Protection system: Laser scanner front and rear, optional camera
Max. speed: 1,8 m/s | 5.9 f/s
Net weight: 60 kg | 132 lbs
Battery type: LFP

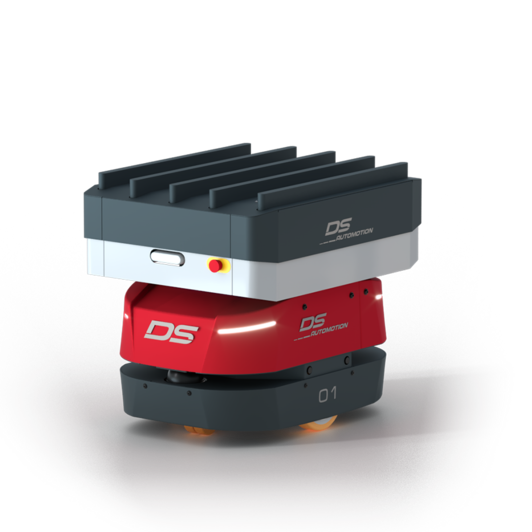

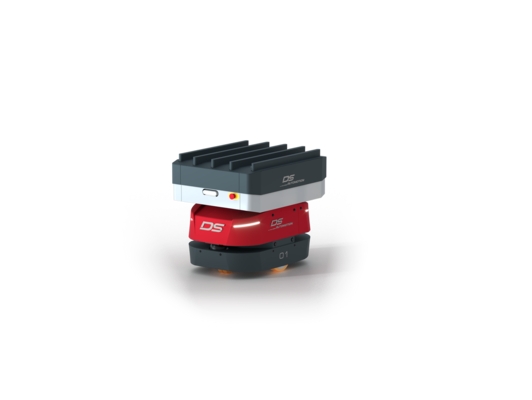

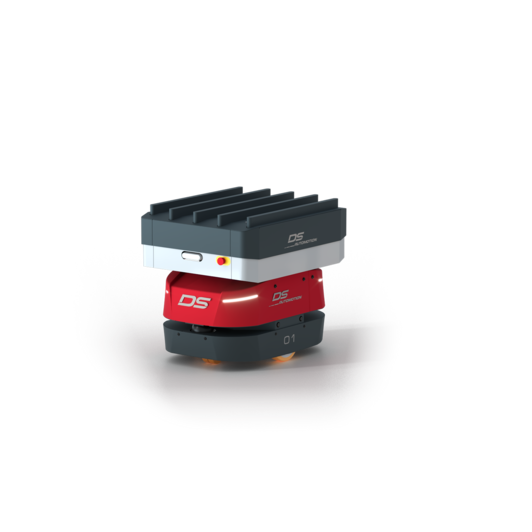

AMY lift | mobiler Roboter für kleine Ladungsträger von DS Automotion GmbH

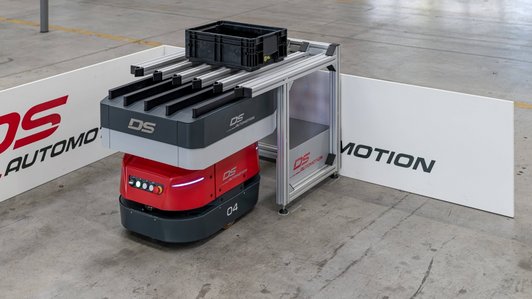

AMY, the reliable autonomous mobile robot system with an active lifting comb

Payload: 25 kg | 55 lbs
LxBxH: 638 x 428 x 349 mm | 25.1 in / 16.9 in / 13.7 in
Navigation / Track guidance: F/S
Speed: 1,8 m/s | 5.9 f/s

The lift comb load device is actively controlled but allows both passive transfer stations and stationary conveyor technology to be operated with a single concept. The system can also be integrated into existing infrastructures without significant modifications.

Max. payload: 25 kg | 55 lbs
LxBxH: 638 x 428 x 349 mm | 25.1 in / 16.9 in / 13.7 in
Navigation: Contour-based
Communication with host computer: WLAN
Protection system: Laser scanner front and rear, optional camera
Max. speed: 1,8 m/s | 5.9 f/s
Net weight: 60 kg | 132 lbs
Battery type: LFP

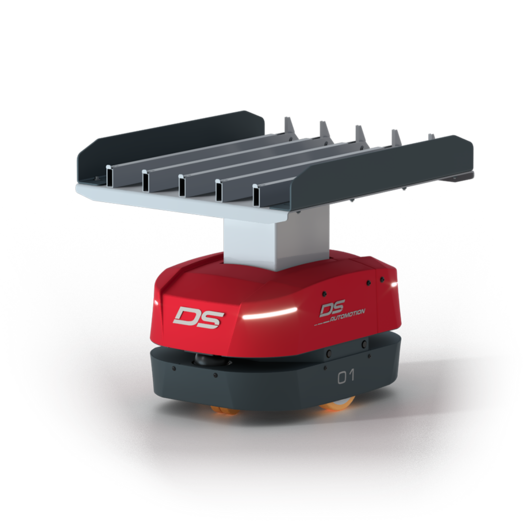

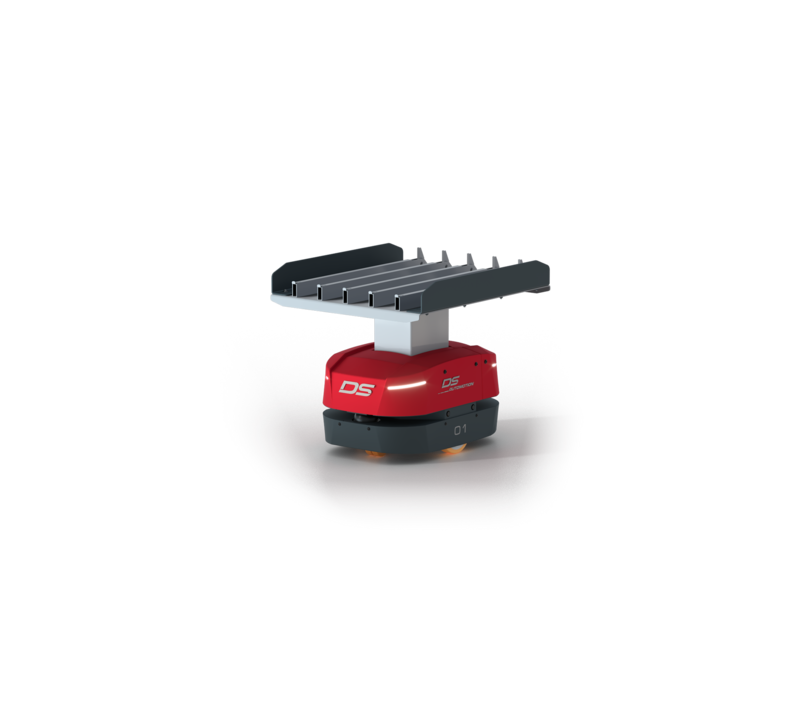

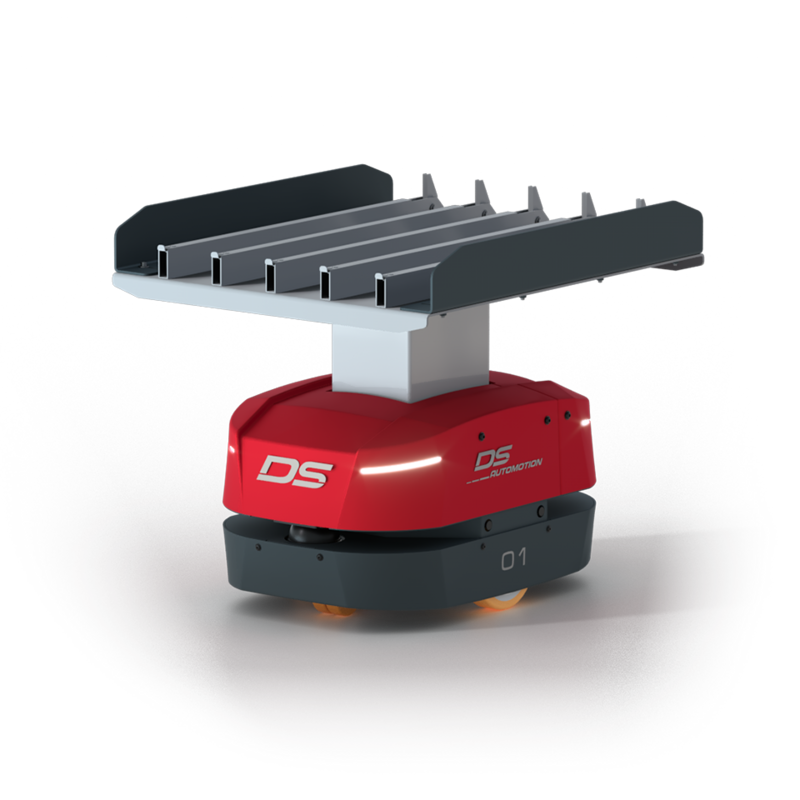

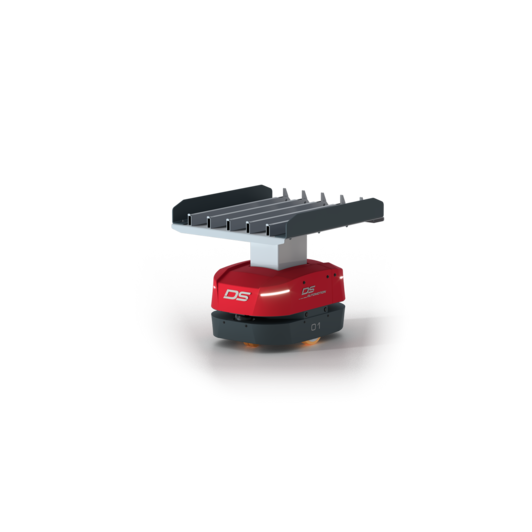

AMY flap | mobiler Roboter für kleine Ladungsträger von DS Automotion GmbH

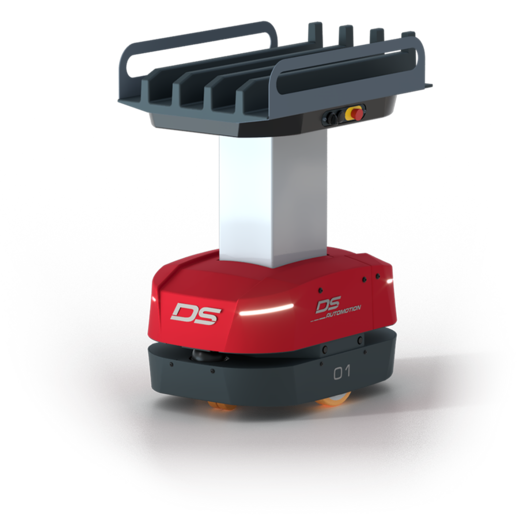

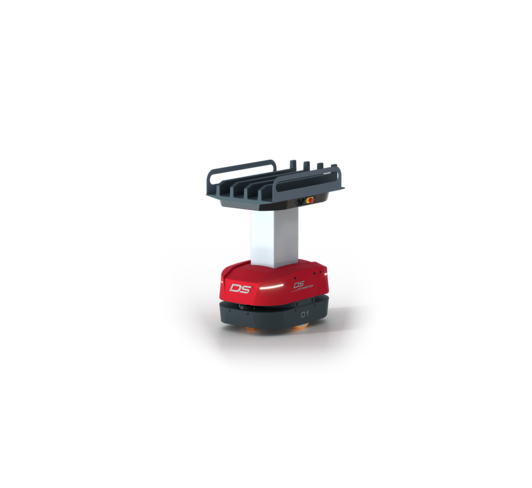

AMY, the reliable autonomous mobile robot system with a passive load-handling device with a gravity latch

Payload: 25 kg
Dimensions (L × W × H): 638 × 428 × 349 mm
Navigation: contour-based
Maximum speed: 1.8 m/s

Passive load transfer handling, developed in collaboration with the Fraunhofer IML Institute, is not only straightforward and reliable but also cost-effective to implement. The gravity-controlled solution eliminates the need for additional drives and sensors for load handling.
